Biamp Ex Logic. Connecting a Shure MX392 or MX393 to an EXLOGIC Biamp Cornerstone Page 1 Tesira Logic Expander (EX-LOGIC) OPERATION MANUAL April 2019.; Page 2 EX-LOGIC PRODUCT DESCRIPTION The Tesira® EX-LOGIC is a half-rack logic box for use with Tesira SERVER and SERVER-IO devices The EX-Logic provides 16 configurable GPIO pins: 12 connections that can be programmed in Tesira software to work as either logic inputs or outputs plus 4 connections that can work either as logic input or output connections or variable voltage control inputs.

The EX-LOGIC provides both logic inputs and outputs and through software can be configured as a control interface The EX-LOGIC also provides a serial port for the output of command strings that can be used to send action commands to other equipment in the system

BIAMP TESIRA EXLOGIC

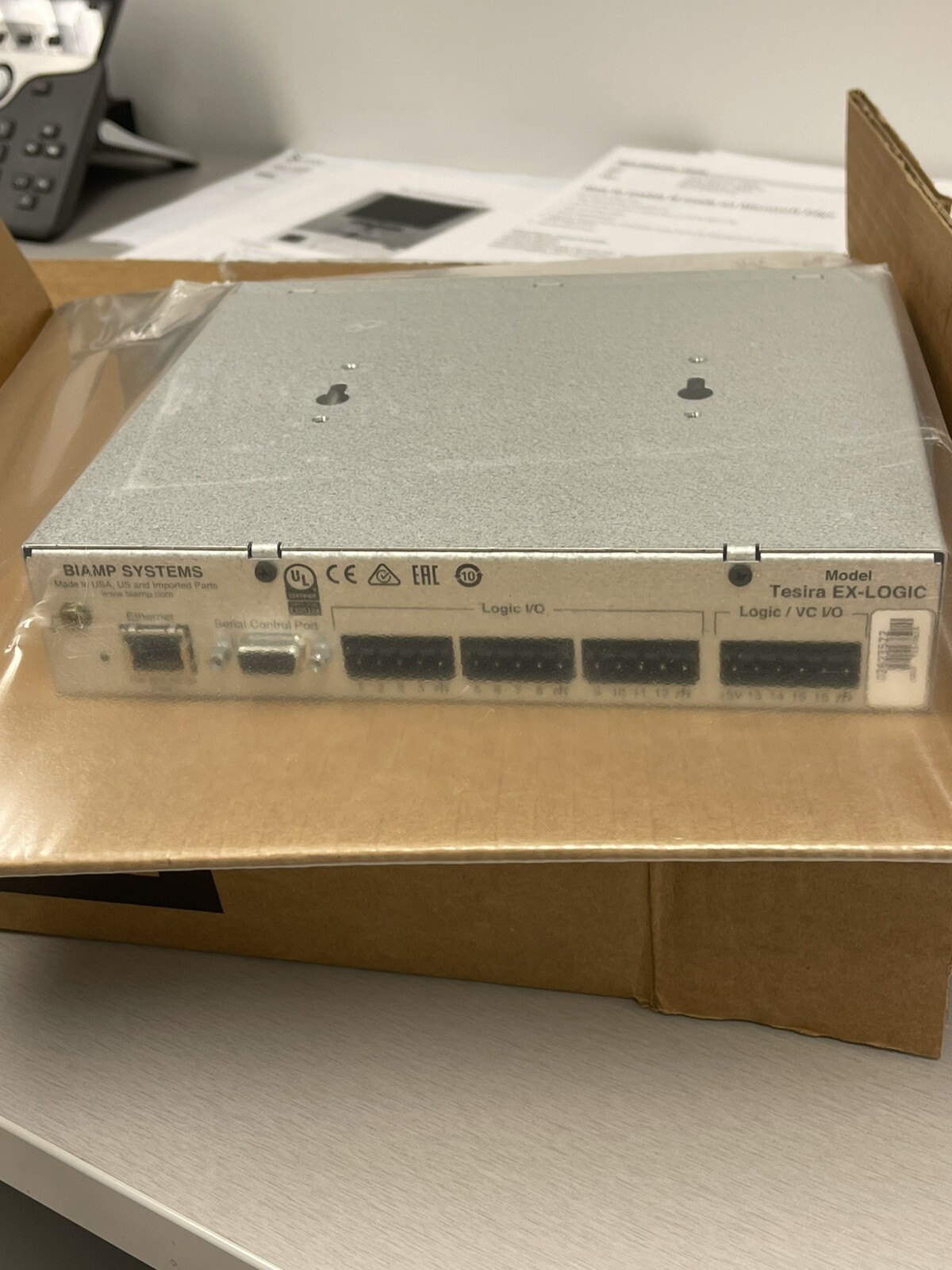

• Covered by Biamp Systems' 5-year warranty The Tesira® EX-LOGIC is a half-rack logic box for use with Tesira SERVER, SERVER-IO and TesiraFORTÉ devices The Tesira® EX-LOGIC is a half-rack logic box for use with Tesira SERVER, SERVER-IO and TesiraFORTÉ devices The EX-Logic provides 16 configurable GPIO pins: 12 connections that can be programmed in Tesira software to work as either logic inputs or outputs plus 4 connections that can work either as logic input or output connections or variable voltage control inputs.

Connecting a Shure MX396 to an EXLOGIC Biamp Cornerstone. Pins 1 - 12 are designated as Logic connections only and will accept contact closure or 5V TTL for input or provide contact closure or LED power (5V/10mA) for. To speak with an Applications Engineer, please call 1.503.641.7287 or email support@biamp.com..

Connecting an Earthworks IML or IMBL to an EXLOGIC Biamp Cornerstone. The Biamp RP-L1 and RP-L2 are wall plates with 25KΩ linear taper potentiometers for volume control The EX-LOGIC also provides a serial port for the output of command strings that can be used to send action commands to other equipment in the system
